Spring 2025 - Coding workshop: Week 1

Workshop dates: April 3 (Thursday), April 4 (Friday):

1. Summary

Packages

tidyverse

Operations

calculations using mean() and median()
read in data using read_csv()
filter data using filter()
group data using group_by()
create new column using mutate()
calculate summary statistics using summarize()
chain functions together using |>
visualize data using ggplot()
create boxplots using geom_boxplot()
create line plots (a type of scatterplot) using geom_point() and geom_line()
label plots using labs()

Data source

This workshop’s data comes from National Parks Service Stats, which is the official repository for all data relating to national parks visits. Today, we are working with data from Channel Islands (unceded Chumash land), Death Valley (unceded Serrano and Cahuilla land), and Joshua Tree (unceded Shoshone, Kawaiisu, and Southern Paiute land). You can orient yourself on this map.

2. Code

Remember to set up an Rproj file!

In class, before we started coding, we set up an Rproject for this folder of workshop materials for week 1. If you need help setting up an Rproject file, see the video on Canvas titled “Creating an Rproject” under the Week 1 module for help.

1. Intro to scripts

In class, we use an R Script. It allows you to write your code (recipe) and run the code in the console (kitchen).

R considers everything in the script as code to run. Try writing code to calculate the sum of 5 and 7 multiplied by 2.

Run code by putting your cursor on the line and hitting Ctrl + Enter or Cmd + Enter.

(5+7)*2 # basic math: adding and multiplying

[1] 24

Everything in colored text is considered code, and that is what R will run in the console. If you don’t want to run code, you can put a pound sign/hashtag at the beginning of the line. This is especially useful when you want to explain what your code is doing at each line in plain language.

Go back up to the code you wrote to do the simple calculation and write a comment describing what the code is doing.

2. Intro to objects

It’s often useful to save things called “objects.” These are stored numbers, lists of numbers, or anything else that appears in the “Environment” tab in the top right.

To save (aka store) an object, the general form is:

object name <- what you want to store

Read aloud, this is “object name, left arrow operator, what you want to store”.

In this code, we are creating an object called visits and storing a list of numbers: 31, 15, 20, 50.

In code, you know that something is a list if it is within a c() function (we’ll get to functions in the next section).

Write a comment at the end of this line describing what it does.

visits <- c(31, 15, 20, 50) # saving a list of numbers as an object called visits

3. Intro to functions

R allows you to apply functions to do calculations, from simple to complex structures.

Let’s say we want to find the mean of the numbers in visits. We could do the calculation by hand, or we could as R to do it for us.

Functions are really powerful tools in R. In this class, we’ll get comfortable learning new functions and applying them to different scenarios.

In this next line, we’ll calculate the mean of the numbers in visits using the function mean().

All functions take the general form function(). Read aloud, this is “function, parentheses”.

mean(visits) # calculating mean of numbers in visits

[1] 29

Write a comment at the end of the line so that you know what it is doing!

There is also a function for calculating the median, another measure of central tendency we talked about in class. You can probably guess what it is called!

median(visits)

[1] 25.5

4. Intro to packages and data

Packages are collections of functions that you can bring into R to use. You’ve already installed a package (using the install.packages() function) if you did the set up steps!

Today (and most days), we’ll use the tidyverse package. The tidyverse is actually a package of packages, and they all have functions that are really useful for us to use in working with data and analyzing it.

In this next line, we’ll “read in the package” using the function library(). You only have to install a package once, but you have to read in a package every time you start a new script or restart R.

library(tidyverse)

To work with data, we can also “read it in” the way we would a package. Basically, we are getting the data into R for us to work with. The function we’ll use for that is read_csv(), which is from the tidyverse package.

parks_visits <- read_csv("parks_visits.csv")

We’ve already looked at the data in Excel, but let’s make sure it’s actually in R.

First, if you look at the “Environment” tab, you should see an object called park_visits.

Is my data actually in R?

If you’re not sure if your data is in R, the first thing to check is the “Environment”. If you’ve read in everything correctly, you should see an object in there. If not, you know something is wrong!

Second, you can use the View() function to look at the actual data.

View(parks_visits)

5. cleaning and wranging

Let’s say we want to figure out what the average (mean) number of visits is for Joshua Tree is across all years and months.

First, you can filter by park to only include jtnp (or Joshua Tree) using the filter() function.

df1 <- filter(parks_visits, # use the parks_visits data frame
              park == "jtnp") # only include rows where `jtnp` is in the `park` column

Then, you can calculate the mean monthly visits for Joshua Tree across all years using the summarize() and mean() functions.

df2 <- summarize(df1, # use the df1 data frame
                 mean_visits = mean(visits)) # calculate the mean number of visits

This can get tedious if you have a bunch of filtering and summarizing to do! So instead, we can use…

6. an easier way to clean and wrangle

You can use what’s called a pipe operator to chain functions together. The keyboard shortcut for a pipe is Ctrl + Shift + M or Cmd + Shift + M.

Which pipe to use?

If you did the set up steps, you should see a pipe operator that looks like this: |>.

If you don’t, you might see a pipe operator that looks like this: %>%.

These both do the same thing, though the |> is from baseR (or, a package of pre-loaded R functions and operators) and the %>% is from the magrittr package in the tidyverse.

When reading your code aloud, you can read the pipe as “and then”

# create a new object called `jtnp`
jtnp <- parks_visits |> # start with the `parks_visits` data frame
  filter(park == "jtnp") |> # filter to only include Joshua tree
  summarize(mean_visits = mean(visits)) # calculate the mean number of visits at Joshua Tree

7. Visualizing data

Let’s say we want to visualize the average monthly visits for Channel Islands, Joshua Tree, and Death Valley. We can use a boxplot to do that. Remember that a boxplot is an easy way to represent the central tendency (using the median) and spread (using quantiles) of a variable.

Before you move on, write your best guess for which park has, on average, the greatest number of visitors (out of these three).

To visualize the data, we’ll use ggplot() and its associated functions, which are all in the ggplot2 package in the tidyverse.

The main parts of creating a plot in ggplot() are:

the “global call”: you have to tell R that you want to use ggplot() by actually naming the function
the “aesthetics”: you have the tell R the data frame name (in this case, parks_visits) and what the x- and y-axes should be (using the aesthetics function called aes())
the “geometries”: this is the type of plot you are making. In this case, we’re using the function geom_boxplot() because we want to make a boxplot. Most geom_() functions are named after the plot they make.

# 1. start with the global call
ggplot(data = parks_visits, # using the data frame parks_visits
       aes(x = park, # 2. naming the aesthetics: the x-axis should be the 3 parks
           y = visits)) + # the y-axis should be monthly visits
  geom_boxplot() # 3. the plot should be a boxplot

Getting a warning?

When you run the code to create this figure, you will get a warning message that looks like this: Warning message: Removed 1 row containing non-finite outside the scale range (stat_boxplot()).

This means that there is a number missing in the data frame. Can you find it? (Hint: you’ll need to look at CNPS visit numbers from 2005).

Missing data is often not a big deal - things happen during data collection! However, we do want to be aware of missing data when we analyze it. That’s why making visualizations is so important; it can help us identify gaps in the dataset if there are any.

Which park do you think receives, on average, the greatest number of visitors?

We can check that using math!

8. Grouping data using `group_by()`

In the parks_visits data frame, there are 3 parks. We could do everything in section 5 for each park individually, or we could use a function called group_by() from the tidyverse. When you use group_by(), you are basically telling R, “there are groups in this dataset that I want you to pay attention to.”

parks_summary <- parks_visits |> # start with the parks_visits data frame
  group_by(park) |> # group by each park
  summarize(median_visits = median(visits, na.rm = TRUE)) # summarize the median number of visits

parks_summary # display the final data frame

# A tibble: 3 × 2
  park  median_visits
  <chr>         <dbl>
1 cnps         25698
2 dvnp         84672.
3 jtnp        144762.

9. Cleaning, wrangling, and visualizing all together

Let’s say we want to create a figure of total annual visits through time. That would mean we would need to add up all the monthly visits for a given park in a given year. We can take advantage of the functions we’ve gone through to do that work!

We’ll also add in a new function here: mutate(). mutate() is a function that allows you to add new columns or manipulate existing columns in a data frame. In this case, we’ll use mutate to do two things:

add a new column called park_name that has the full name of each park (instead of the abbreviation)
add a new column called visits_millions that calculates the annual number of visits in millions

annual_visits <- parks_visits |> # start with the parks_visits data frame
  group_by(park, year) |> # group by park AND year
  summarize(total_visits = sum(visits, na.rm = TRUE)) |> # calculate total visits per year
  mutate(park_name = case_when( # create a new column called park_name
    park == "cnps" ~ "Channel Islands", # when cnps appears in the park column, fill in Channel Islands
    park == "dvnp" ~ "Death Valley", # when dvnp appears in the park column, fill in Death Valley
    park == "jtnp" ~ "Joshua Tree" # when jtnp appears in the park column, fill in Joshua Tree
  )) |>
  mutate(visits_millions = total_visits/1000000) # add a new column called visits_millions, where the total visits are divided by 1000000

Now, we can visualize the data in a line plot, which is a type of scatter plot except the points are connected with lines. We can do that using ggplot() again, but this time with two new “geometries”: geom_point() and geom_line().

We’ll also add some color to the plot to make it more interesting to look at!

Lastly, we’ll add in a new function called labs(), which allows us to change the labels on the axes and legend and add a title to the plot, to make things more clear.

ggplot(data = annual_visits, # use the annual_visits data frame
       aes(x = year, # the x-axis should be year
           y = visits_millions, # the y-axis should be visits in millions
           color = park_name)) + # color all geometries by park_name
  geom_point() + # adding points
  geom_line() + # adding lines
  labs(x = "Year", # relabelling the x-axis
       y = "Recreation visits (in millions)", # and the y-axis
       title = "Joshua Tree receives more visits than Death Valley and Channel Islands", # adding a title
       color = "Park name") # relabelling the legend

END OF WORKSHOP 1

3. Extra stuff

Keyboard shortcut for `<-`

On Macs, this is Opt + -. On Windows, this is Alt + -.

Applying and changing colors in a `ggplot()` object

If you want your plot to have colors in it and/or control the colors, you will need two things in your code:

to apply colors: in the aes() call, have color = or fill = for the column in your data frame that represents the colors
to control colors: you can add on another layer (using the + operator) of scale_color_manual() or scale_fill_manual.

What to use: color or fill?

fill is appropriate for any shape that you are filling in (i.e. something with a boundary); for example, in the boxplot, you are filling in the rectangle shape of the box.

color is appropriate for anything that’s not a shape; points and lines are typically what you would “color”.

It takes some intuition building to decide which to use, so don’t get discouraged if you try fill but realize it’s supposed to be color or vice versa.

Here’s a demonstration of how that works for a boxplot, where the argument in the aes() call is fill and the function to control the colors is scale_fill_manual().

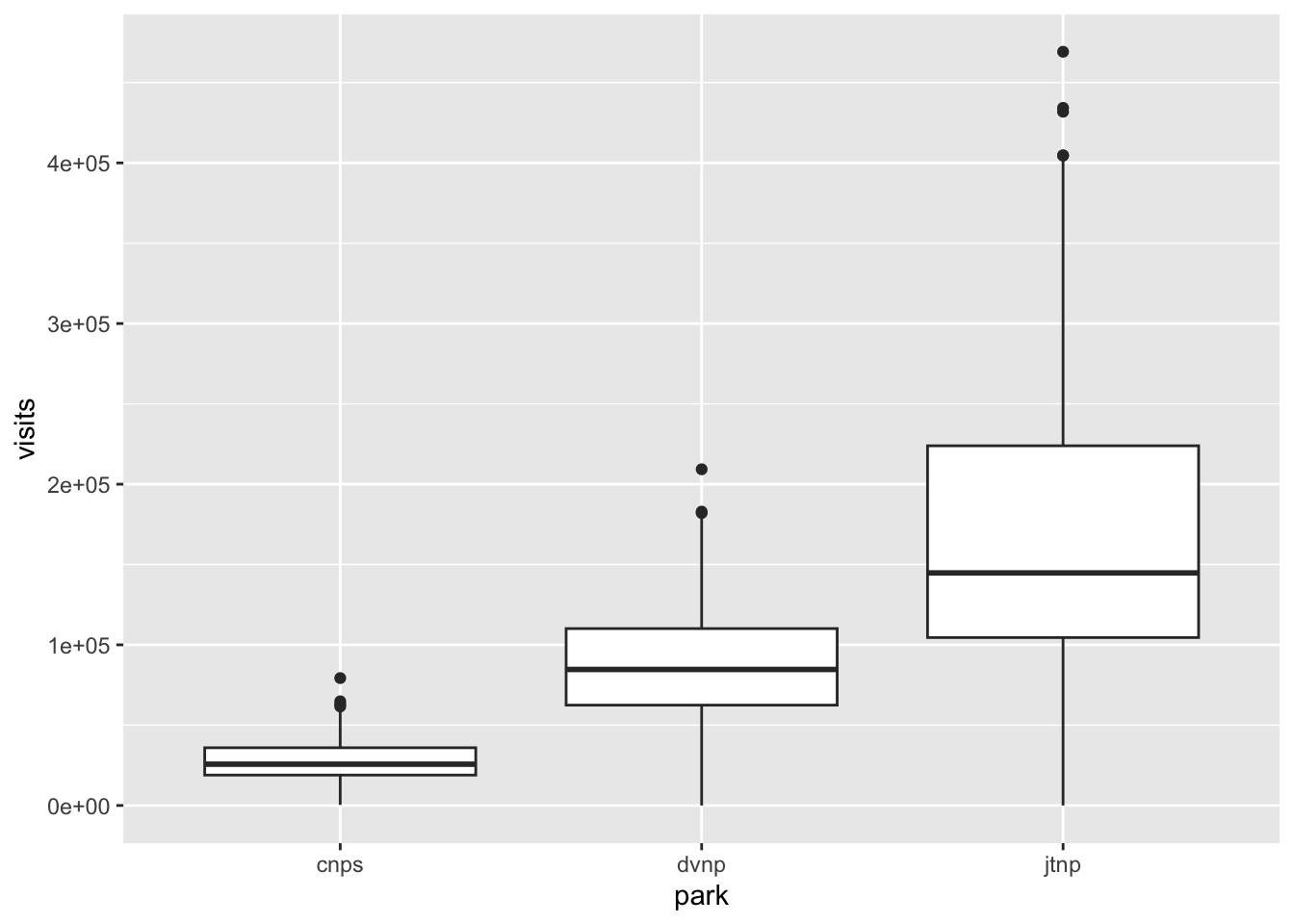

Without colors:

ggplot(data = parks_visits,
       aes(x = park,
           y = visits)) +
  geom_boxplot()

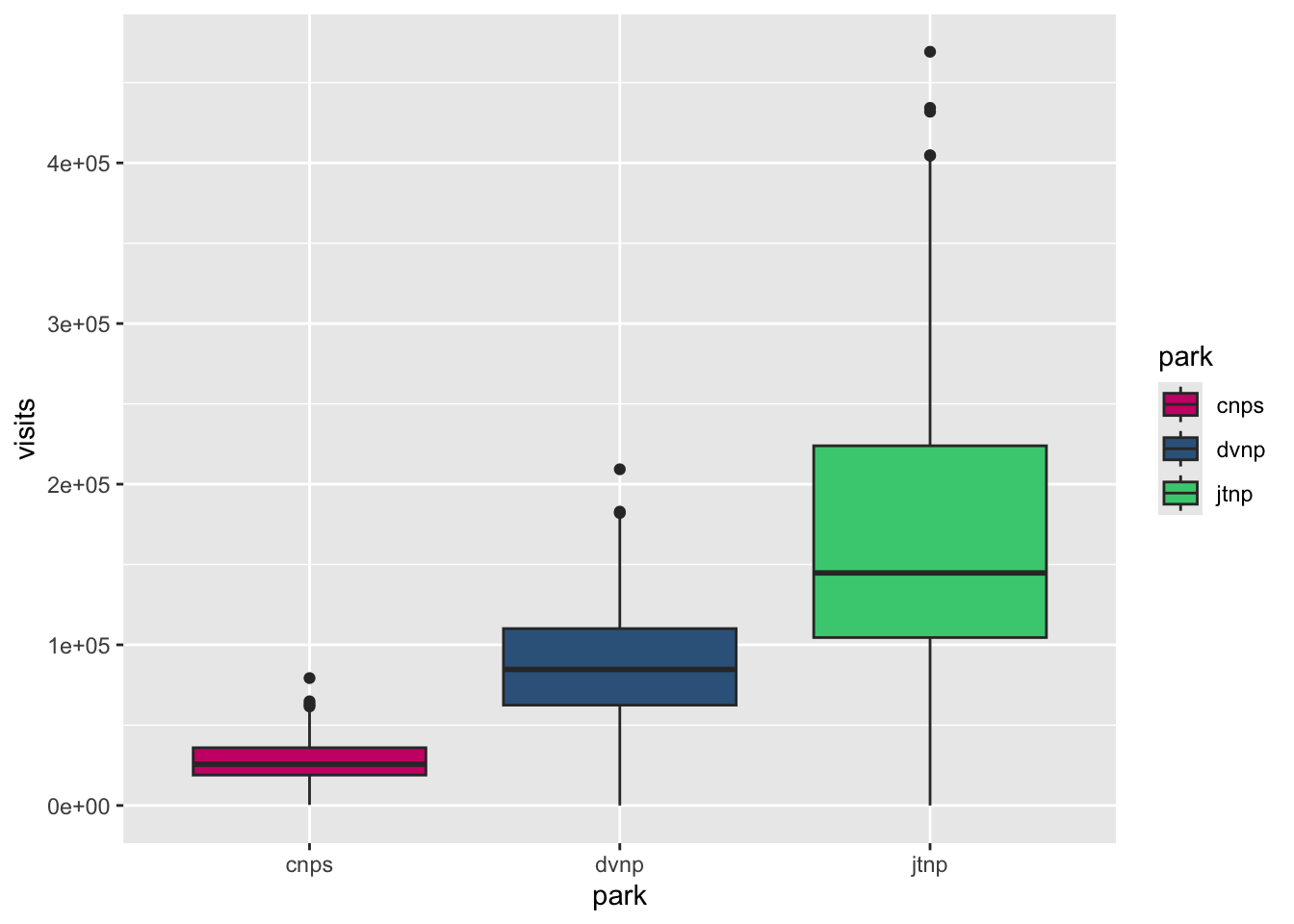

With colors:

ggplot(data = parks_visits,
       aes(x = park,
           y = visits,
           fill = park)) +
  geom_boxplot() +
  scale_fill_manual(values = c("cnps" = "deeppink3",
                               "jtnp" = "seagreen3",
                               "dvnp" = "steelblue4"))

Here’s a demonstration of how it works with a line plot, where the argument in the aes() call is color and the function to control the colors is scale_color_manual().

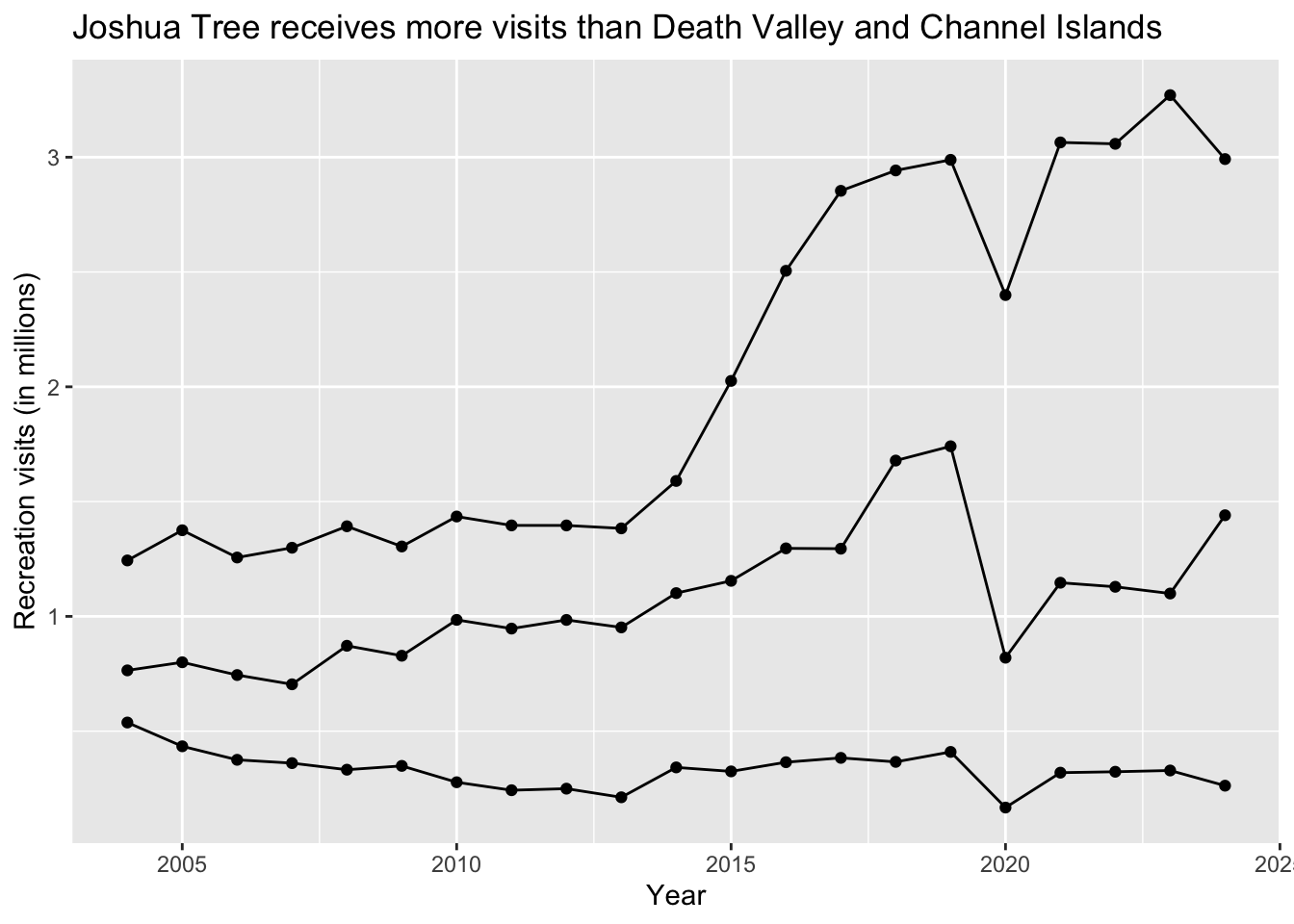

Without colors:

ggplot(data = annual_visits,
       aes(x = year,
           y = visits_millions,
           group = park)) + # this is an extra argument to make sure there is one line per park
  geom_point() +
  geom_line() +
  labs(x = "Year",
       y = "Recreation visits (in millions)",
       title = "Joshua Tree receives more visits than Death Valley and Channel Islands",
       color = "Park name")

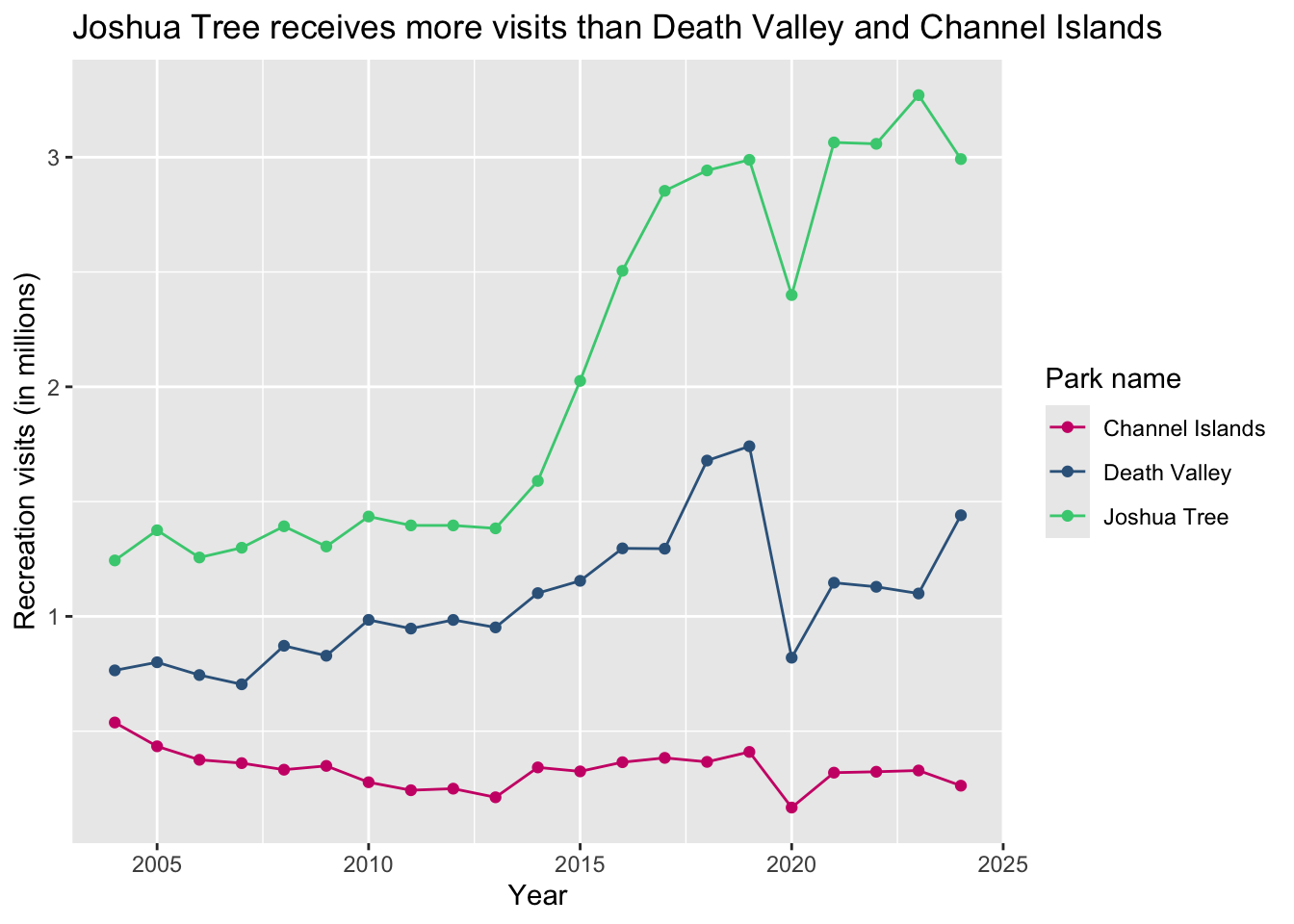

With colors:

ggplot(data = annual_visits,
       aes(x = year,
           y = visits_millions,
           color = park_name)) +
  geom_point() +
  geom_line() +
  labs(x = "Year",
       y = "Recreation visits (in millions)",
       title = "Joshua Tree receives more visits than Death Valley and Channel Islands",
       color = "Park name") +
  scale_color_manual(values = c("Channel Islands" = "deeppink3",
                                "Joshua Tree" = "seagreen3",
                                "Death Valley" = "steelblue4"))

Careful about your labels!

When naming the colors that you’ll assign to each value in a column, be sure that they match up with the column you typed in for your fill or color argument.

For example, the boxplot uses fill = park. The park column in the parks_visits data frame has three values: cnps, jtnp, and dvnp. That’s why the scale_fill_manual() function contains a list of values using the abbreviations.

In contrast, the line plot uses color = park_name. The park_name column in the annual_visits data frame has three values: Channel Islands, Joshua Tree, and Death Valley. Thus, the scale_color_manual() function contains a list of values using the full names.

Choosing colors!

Go down color rabbit holes! Some resources to do that:

Named colors in R: R has a bunch of built in color names, like steelblue3, violetred2, and darkorchid4.
hex codes: more customizable colors come from hex codes, which are 6 digit alphanumeric codes that describe a color. For example, #FFFFFFF represents white, while #000000 represents black, and #3d85c6 is a nice blue.
color palettes: if you want to change the colors but you don’t want to pick your own, you can use color palettes. These are collections of colors that people have put into packages for you to use in your plots. There are lots of interesting packages of palettes: a beyonce package that has a bunch of palettes from music videos/concerts, a vangogh package that has palettes from Van Gogh paintings, and much more. A package I developed with my friends is calecopal, which is a package of palettes inspired by California ecosystems.
